container_macros.h File Reference

Macros to define containers of objects. More...

Include dependency graph for container_macros.h:

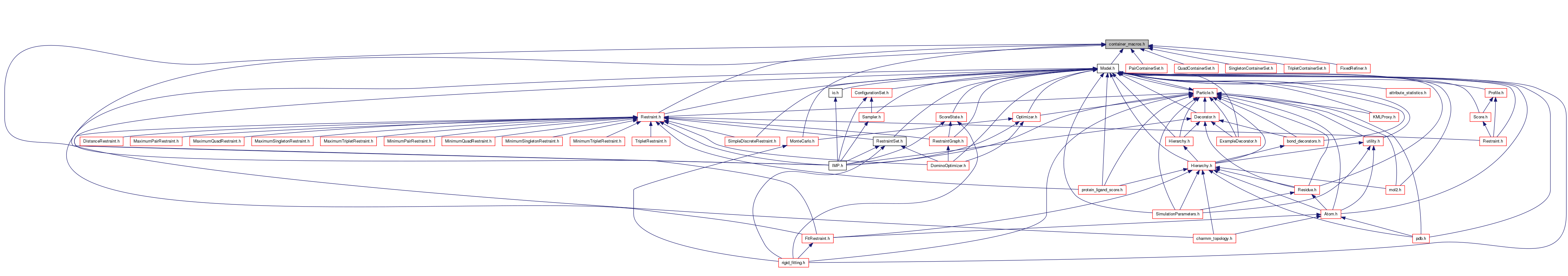

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	IMP_EXPOSE_ITERATORS(ContainerType, container_name, Ucname, lcname)
#define	IMP_LIST(protection, Ucname, lcname, Data, PluralData)
	A macro to provide a uniform interface for storing lists of objects.
#define	IMP_LIST_IMPL(Class, Ucname, lcname, Data, PluralData, OnAdd,OnChanged, OnRemoved)
	This should go in a .cpp file for the respective class.
#define	IMP_PROTECTION(protection)   protection:

---

Detailed Description

Macros to define containers of objects.

Copyright 2007-2010 IMP Inventors. All rights reserved.

---

Define Documentation

#define IMP_EXPOSE_ITERATORS	(	ContainerType,
		container_name,
		Ucname,
		lcname		)

Internal use only.

#define IMP_LIST	(	protection,
		Ucname,
		lcname,
		Data,
		PluralData		)

A macro to provide a uniform interface for storing lists of objects.

This macro is designed to be used in the body of an object to add a set of methods for manipulating a list of contained objects. It adds methods

• get_foo
• set_foo
• set_foos
• foos_begin, foos_end
• remove_foo
• remove_foos etc. where foo is the lcname provided.

Parameters:

[in]	protection	The level of protection for the container (public, private).
[in]	Ucname	The name of the type of container in uppercase.
[in]	lcname	The name of the type of container in lower case.
[in]	Data	The type of the data to store.
[in]	PluralData	The plural of the data name. This should be a container type.

An accompanying IMP_LIST_IMPL must go in a .cpp file.

Note:

This macro should be given an appropriate name and wrapped in a doxygen comment block such as by starting with a C++ comment like

     @name short description
     longer description
     @{


and ending with one like

     @}


#define IMP_LIST_IMPL	(	Class,
		Ucname,
		lcname,
		Data,
		PluralData,
		OnAdd,
		OnChanged,
		OnRemoved		)

This should go in a .cpp file for the respective class.

This code should go in a .cpp file. One macro for each IMP_CONTAINER.

Parameters:

[in]	Class	The name of the class containing this container.
[in]	Ucname	The name of the type of container in uppercase.
[in]	lcname	The name of the type of container in lower case.
[in]	Data	The type of the data to store.
[in]	PluralData	The plural of the data name. This should be a container type.
[in]	OnAdd	Code to modify the passed in object. The object is obj and its index index.
[in]	OnChanged	Code to get executed when the container changes.
[in]	OnRemoved	Code to get executed when the an object is removed.

For all of these the current object is called obj.
